| Place of Origin: | Dongguan,China |
| Marka adı: | HYD |
| Sertifika: | CE / IS09001 |
| Model numarası: | HYD-40T-3A |
| Min sipariş miktarı: | 1 set |
|---|---|
| Fiyat: | USD 27500~28500/sets |
| Ambalaj bilgileri: | Plywood kapak |
| Teslim süresi: | 20 Gün |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram, T/T |
| Yetenek temini: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| eksen: | Üç Eksen | Opsiyonel Araçlar: | Döndürücü/Servo Makas |
|---|---|---|---|
| makine boyama: | gerekli renk olabilir | Liman: | Shenzhen Çin |
| Teslim tarihi: | 15 GÜN | tel çapı: | 1.0~4.0mm |
| outside Diameter: | Max 60mm | Tel besleme hızı: | 110mm |
| Güç kaynağı: | 380V+%10V50Hz | ||
| Vurgulamak: | CNC Bahar Dolaştırma Makinesi,Cam CNC Bahar Dolaştırma Makinesi |
||

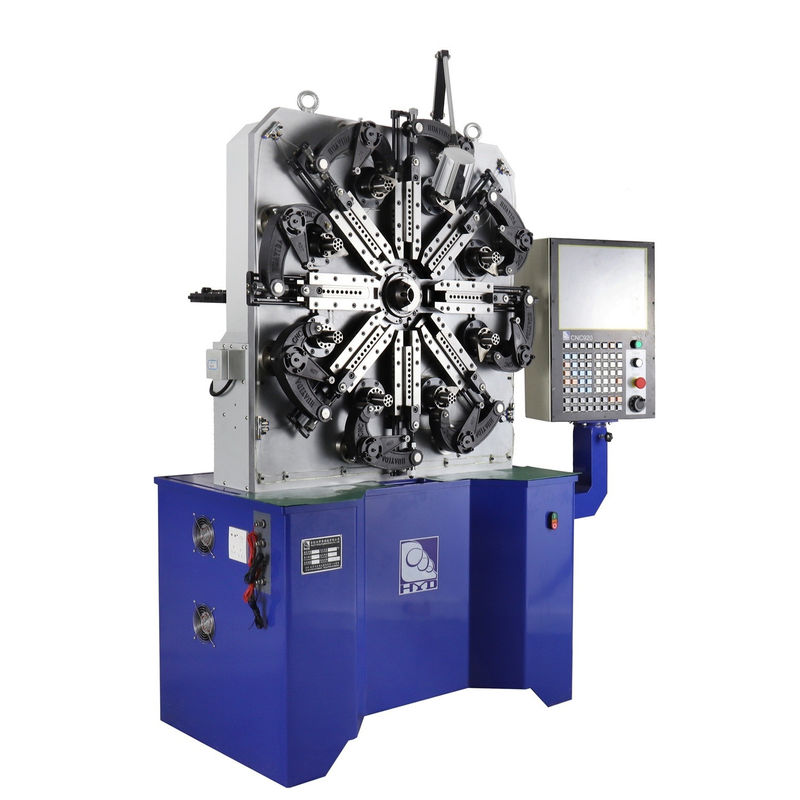

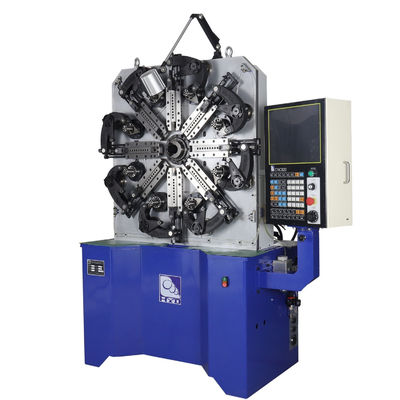

CNC Spring Making Machine Cam Spring Winding Machine With Sanyo Servo Motor
Suitable for processing various precision compression springs, extension springs, single and double torsion springs, tower springs, flat wire springs, special-shaped springs and complex wire forming products, widely used in furniture, electrical appliances, beds/seat cushions, lighting, electric vehicles , automobiles, kitchen utensils, machinery and molds and other fields.
| Diameter | 1.0~4.0mm |
| Max OD | 60mm |
| Wire Feeding speed | 0~110m/min |
| Transmission speed cam | 0~60RPM |
| Wire feed servo motor | 5.5KW |
| Can servo motor | 5.5KW |
| Rotary servo motors | 1.0KW |
| Machine size | 1600*1300*1900mm |
| Machine Weight | 1800kg |
Feature:
1. Versatile spring former applicable for wire forming, torsion and extension springs.

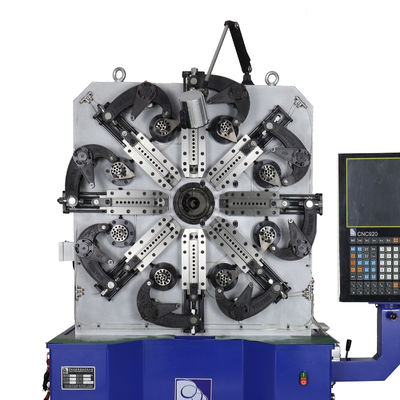

2. 8 forming slides controlled by cam axis.
3. Wire Rotation 360 degree.
4. Quick release mechanism for wire change over.
5. Varieties of configurations such as lateral slide, servo cutter, dual spinner, rotary gripper, hook station and etc.

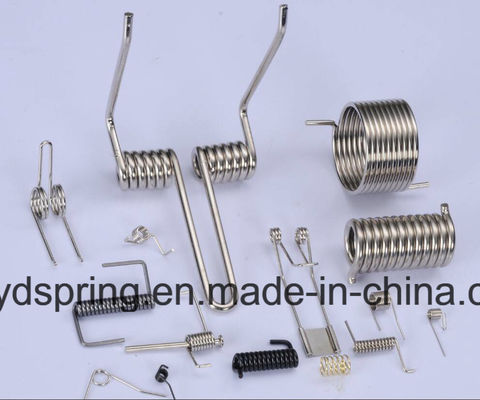

Samples:
After-sale service
---Free installation & training service in HYD company.
---Always provide customers efficient on-line response.
Can you provide technical support?
---HYD provide free technical support,installation and training of machine.
How do you support when machine goes wrong.
---Talk with HYD specialist online by telephone, Skype, WhatsApp etc and give high-efficient solution for the incorrect operation or change the consumable parts.
---HYD specialist will teach you how to change the parts during the training time
Samples:
