20T-3A 141m/Min Max Feeding Speed 0.2 - 2.3mm Cam Computer Spring Machine 380V

20T-3A 141m/Min Max Feeding Speed 0.2 - 2.3mm Cam Computer Spring Machine 380V

20T-3A 141m/Min Max Feeding Speed 0.2 - 2.3mm Cam Computer Spring Machine 380V
20T-3A 141m/Min Max Feeding Speed 0.2 - 2.3mm Cam Computer Spring Machine 380V
20T-3A 141m/Min Max Feeding Speed 0.2 - 2.3mm Cam Computer Spring Machine 380V
Ürün ayrıntıları:
Place of Origin: Dongguan,China
Marka adı: HYD
Sertifika: CE / IS09001
Model Number: HYD-20T-3A
Ödeme & teslimat koşulları:
Minimum Order Quantity: 1 Set
Fiyat: Anlaşılabilir
Packaging Details: Standard Seaworthy Plywood Case
Delivery Time: 15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 sets one week
İletişim
Detaylı ürün tanımı
Wire Diameter: 0.2-2.3mm Axis: Three to Four Axes
Delivery date: 15 days CNC system: Automatic
Decoiler: 100KG Cutting tool: Standard
Additional Tool: Spinner
Vurgulamak:

380V torsion spring machine

,

high-speed cam computer spring machine

,

2.3mm max thickness spring machine

20T-3A 141m/Min Max Feeding Speed 0.2 - 2.3mm Cam Computer Spring Machine 380V
Product Specifications
Attribute Value
Wire Diameter 0.2-2.3mm
Axis Three to Four Axes
Delivery date 15 days
CNC system Automatic
Decoiler 100KG
Cutting tool Standard
Additional Tool Spinner
Product Description

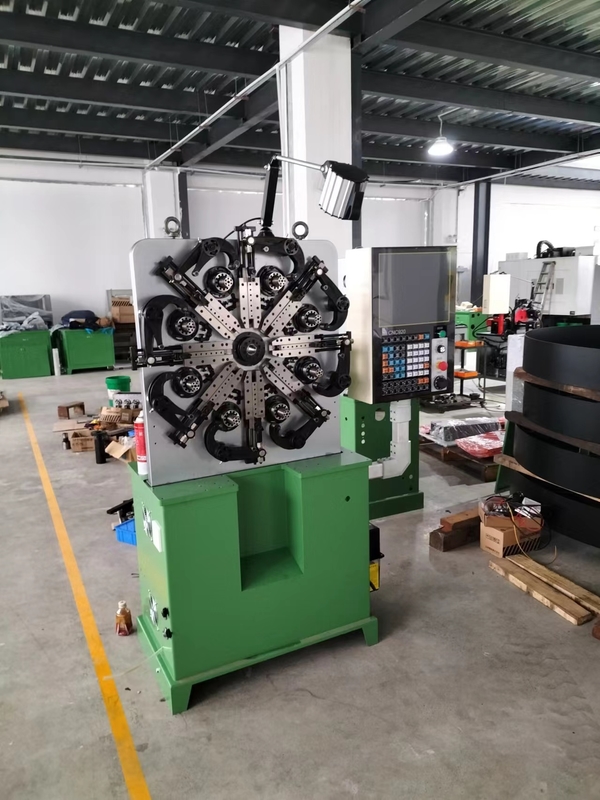

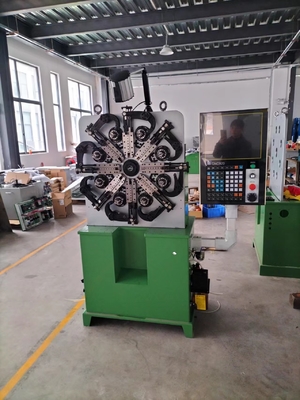

0.2 - 2.3mm Torsion Spring Making Machine with Three to Four Axes

This machine can make tension spring, torsion spring, and many kinds of wire forms. The original model comes with three axes, but we can also customize based on requirements. We have already made machines with four axes, five axes, six axes, ten axes, and twelve axes. Twelve axes models include wire rotation function in the back.

Wire size 0.2-2.3mm
Max feeding speed 141m/min
Direct storage programs 1000
X-axis motor output 2.7KW
Y-axis motor output 2.7KW
Z-axis motor output 1.0KW
Machine size 1400×900×1600mm
Voltage 380V
Weight 700kg
Spring Examples
20T-3A 141m/Min Max Feeding Speed 0.2 - 2.3mm Cam Computer Spring Machine 380V 0 20T-3A 141m/Min Max Feeding Speed 0.2 - 2.3mm Cam Computer Spring Machine 380V 1 20T-3A 141m/Min Max Feeding Speed 0.2 - 2.3mm Cam Computer Spring Machine 380V 2 20T-3A 141m/Min Max Feeding Speed 0.2 - 2.3mm Cam Computer Spring Machine 380V 3 20T-3A 141m/Min Max Feeding Speed 0.2 - 2.3mm Cam Computer Spring Machine 380V 4 20T-3A 141m/Min Max Feeding Speed 0.2 - 2.3mm Cam Computer Spring Machine 380V 5 20T-3A 141m/Min Max Feeding Speed 0.2 - 2.3mm Cam Computer Spring Machine 380V 6
Service Support
  • Durable quality of machine and the most professional service would be provided.
  • Free solution for your production will be provided. The staff in HYD company are with rich experience, best solution will be provided all the time.
  • Your visiting to HYD company for checking or training is warmly welcome.
