CNC Spring Machine with 110m/min Wire Feed Speed 60 RPM Cam Revolution and 12kw Power for Precision Spring Coiling

Ürün ayrıntıları:

Menşe yeri:	Guangdong, Çin
Marka adı:	HYD

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1

İletişim

Detaylı ürün tanımı

Ağırlık:	1800 kg	Gerilim:	380 V
Güç:	12 KW	Tel boyutu:	1.0-4.0 mm
Servo Motorları:	3 eksen	Maksimum Tel Hızı:	110 m/dak
Kam Devrimi Hızı:	0-60 rpm	Dış Çap:	Maksimum 60 mm
Tel besleme silindiri:	4 çift	Maksimum hata:	± 0.10 ~ ± 359.90
Tel besleme motoru:	5.5 kW	Kamera motoru:	5.5 kW
Çekirdek eksen motoru:	1.0 kw	Makine boyutu:	L1600W1300H1900 mm
Motorlu marka:	SANYO
Vurgulamak:	110m/min Wire Feed Speed CNC Spring Machine , 60 RPM Cam Revolution CNC Spring Machine , 12kw Power CNC Spring Machine

CNC Spring Making Machine with Sanyo Servo Motor 1.0-4.0mm Spring Winding

Product Overview

High-precision CNC spring making machine designed for metal and metallurgy industries, featuring Sanyo servo motors and capable of handling wire sizes from 1.0-4.0mm.

Technical Specifications

Model	HYD-40T-3A
Wire Size	1.0-4.0mm
Servo Motors	3 axes
Outside Diameter	Max 60mm
Wire Feed Roller	4 Pairs
Maximum Error	±0.10~±359.90
Wire Feed Speed	110m/min
Cam Revolution Speed	0~60 RPM
Control System	1SET

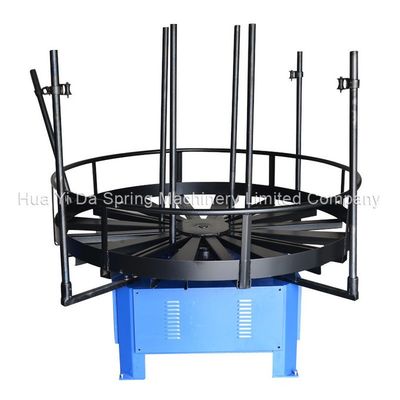

Decoiler	200KG
Wire Feed Motor	5.5KW
Cam Motor	5.5KW
Core Axis Motor	1.0KW
Motor Brand	Sanyo
Power Supply	380V±10%V 50Hz
Machine Weight	1800KG
Machine Dimensions	L1600×W1300×H1900mm

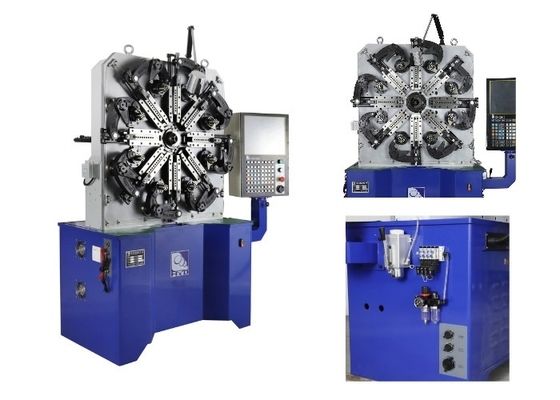

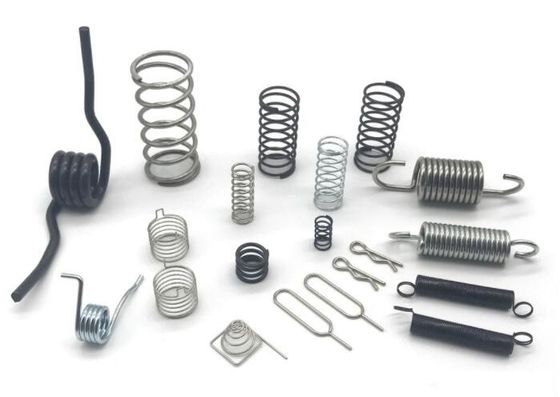

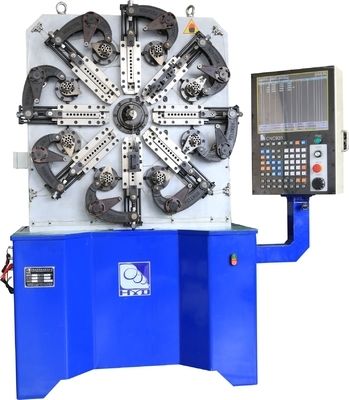

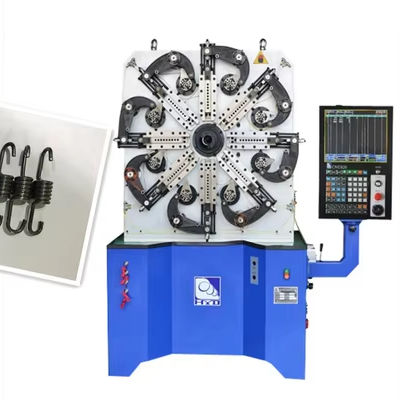

Product Images

Frequently Asked Questions

Q1: Can you send me the catalogue?

A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.

Q2: Do you accept OEM?

A2: We can produce any of your requested designs.

Q3: Can it be configured with something else?

A3: Yes, We can customize the machine according to your product requirements.

Q4: Are you a factory?

A4: Sure. We are factory direct sales; welcome to visit our factory.

Q5: What information will be helpful in getting an accurate quotation?

A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.

Q6: What is the power supply of the machine?

A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customize as per requirement.

Q7: What is the payment term?

A7: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.

Q8: What is the delivery time?

A8: Normally the manufacturing time is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.

Q9: What is the guarantee period of the machine?

A9: The guarantee period is one year from the date of B/L.

Q10: What is the MOQ?

A10: One set. We will make the machine suitable for you according to your needs.
