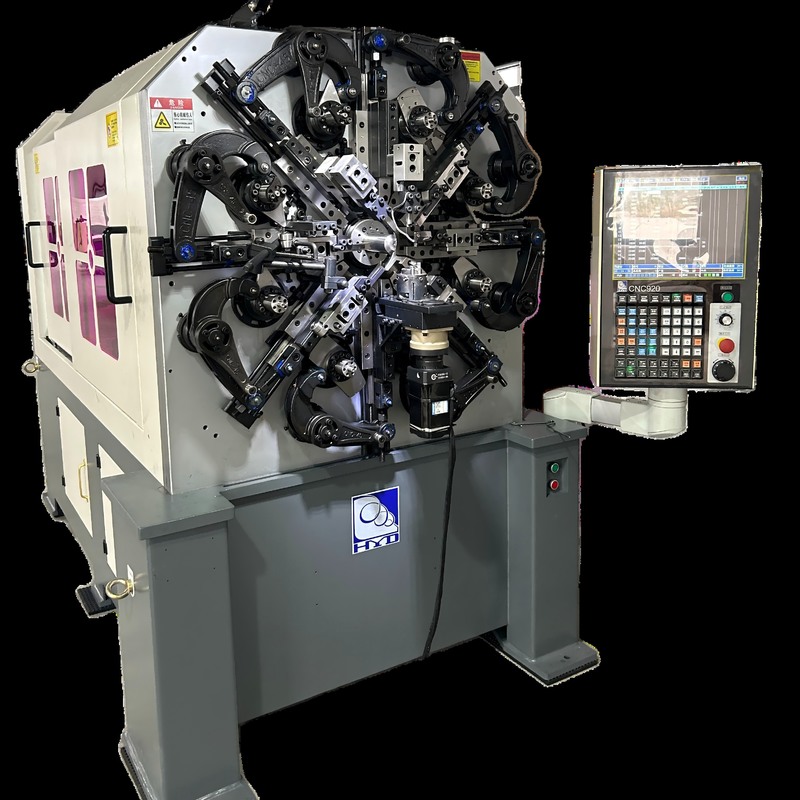

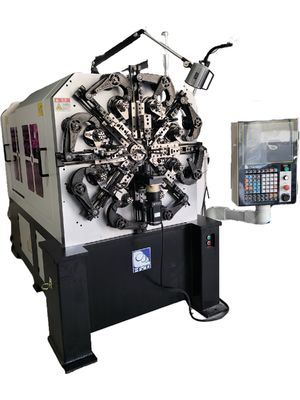

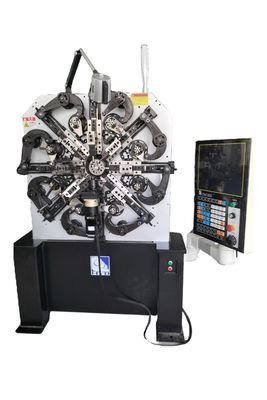

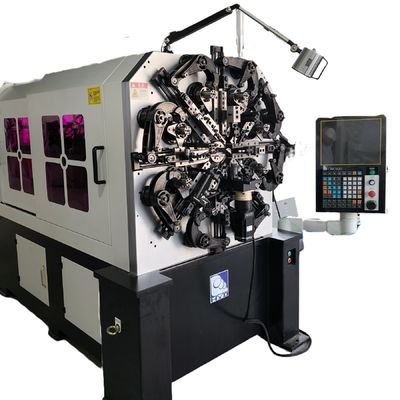

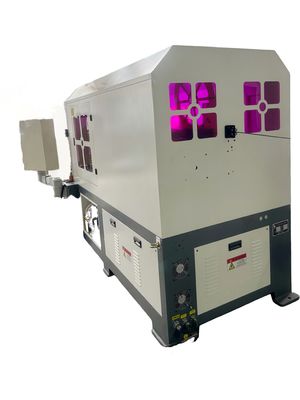

CNC Spring Machine with Max Wire Speed 110m/min for 1-4.2MM Wire Size and 380V Voltage Automatic Spring Forming Machine

CNC Spring Machine with Max Wire Speed 110m/min for 1-4.2MM Wire Size and 380V Voltage Automatic Spring Forming Machine

  • CNC Spring Machine with Max Wire Speed 110m/min for 1-4.2MM Wire Size and 380V Voltage Automatic Spring Forming Machine
  • CNC Spring Machine with Max Wire Speed 110m/min for 1-4.2MM Wire Size and 380V Voltage Automatic Spring Forming Machine
  • CNC Spring Machine with Max Wire Speed 110m/min for 1-4.2MM Wire Size and 380V Voltage Automatic Spring Forming Machine
  • CNC Spring Machine with Max Wire Speed 110m/min for 1-4.2MM Wire Size and 380V Voltage Automatic Spring Forming Machine
  • CNC Spring Machine with Max Wire Speed 110m/min for 1-4.2MM Wire Size and 380V Voltage Automatic Spring Forming Machine
  • CNC Spring Machine with Max Wire Speed 110m/min for 1-4.2MM Wire Size and 380V Voltage Automatic Spring Forming Machine
CNC Spring Machine with Max Wire Speed 110m/min for 1-4.2MM Wire Size and 380V Voltage Automatic Spring Forming Machine
Ürün ayrıntıları:
Menşe yeri: Guangdong, Çin
Marka adı: HYD
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1
İletişim
Detaylı ürün tanımı
Ağırlık: 2500 kg Gerilim: 380 V
Güç: 15.7 kW Tel boyutu: 1-4.2 mm
Servo Motorları: 5 Eksen Maksimum Tel Hızı: 110 m/dak
Tel besleme motoru: 5.5 kW CAM Servo Motoru: 5.5 kW
Spinner motoru: 1.0 kw Tel döner motor: 2.7 kW
Istakoz motoru: 1.0 kw Decoiler kapasitesi: 500 kg
Makine boyutu: 1400*900*1600 mm Motorlu marka: SANYO
Sıklık: 50 Hz
Vurgulamak:

Max Wire Speed 110m/min CNC Spring Machine

,

1-4.2MM Wire Size Spring Forming Machine

,

380V Voltage Computer Spring Machine

Spring Making Machine CNC Spring Forming Machine Cam Spring Machine HYD-40T-5A Product Specifications Model HYD-40T-5A Diameter 1.0~4.2mm Feeding speed 0~110m/min Motor Sanyo Wire feed servo motor 5.5KW Cam servo motor 5.5KW Spinner motor 1.0KW Wire Rotary servo motor 2.7KW Quill motor 1.0KW Power 380V±10%V50Hz Decoiler 500kg Machine Size 1400*900*1600mm Machine Weight 2500KG Application Scenario Product Categories Frequently Asked Questions Q1: Can you send me the catalogue?

Etiket:

cnc sargı makinesi,

cnc bahar yapma makinesi,

otomatik yay makinesı
