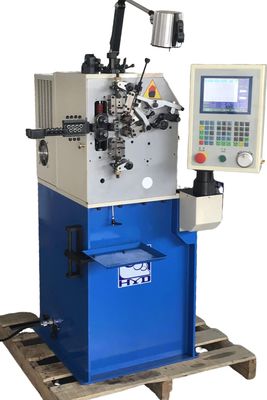

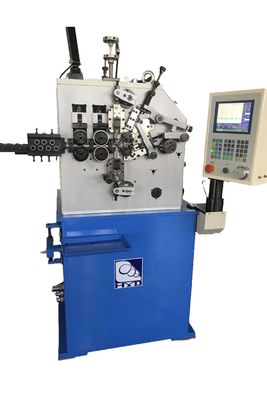

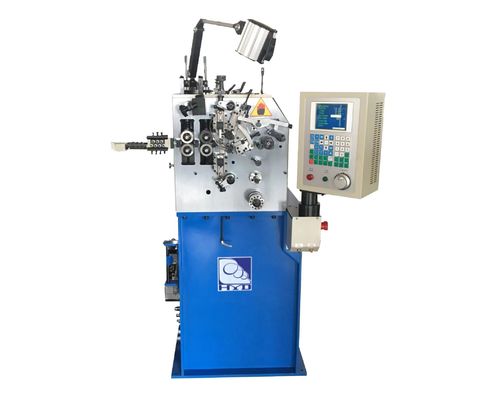

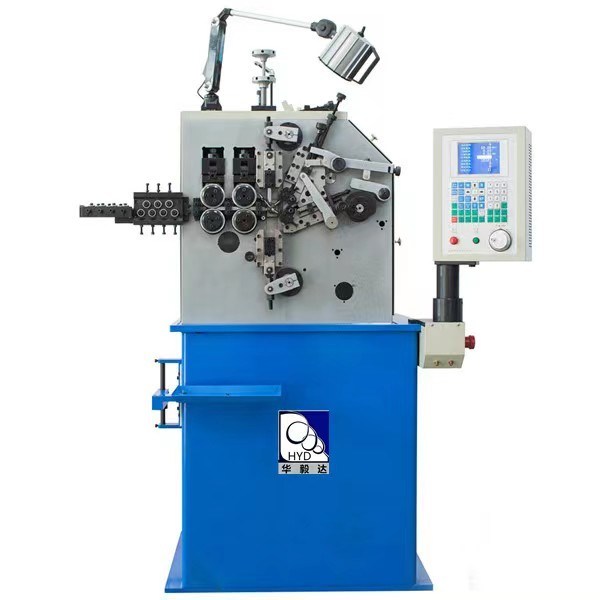

High-Precision 0.2-1.2mm Automatic Computer Compression Spring Coiling Machine with 2kw Power and Max Wire Speed 1000m/min

High-Precision 0.2-1.2mm Automatic Computer Compression Spring Coiling Machine with 2kw Power and Max Wire Speed 1000m/min

  • High-Precision 0.2-1.2mm Automatic Computer Compression Spring Coiling Machine with 2kw Power and Max Wire Speed 1000m/min
  • High-Precision 0.2-1.2mm Automatic Computer Compression Spring Coiling Machine with 2kw Power and Max Wire Speed 1000m/min
  • High-Precision 0.2-1.2mm Automatic Computer Compression Spring Coiling Machine with 2kw Power and Max Wire Speed 1000m/min
  • High-Precision 0.2-1.2mm Automatic Computer Compression Spring Coiling Machine with 2kw Power and Max Wire Speed 1000m/min
  • High-Precision 0.2-1.2mm Automatic Computer Compression Spring Coiling Machine with 2kw Power and Max Wire Speed 1000m/min
  • High-Precision 0.2-1.2mm Automatic Computer Compression Spring Coiling Machine with 2kw Power and Max Wire Speed 1000m/min
High-Precision 0.2-1.2mm Automatic Computer Compression Spring Coiling Machine with 2kw Power and Max Wire Speed 1000m/min
Ürün ayrıntıları:
Menşe yeri: Guangdong, Çin
Marka adı: HYD
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1
İletişim
Detaylı ürün tanımı
Ağırlık: 400 kg Gerilim: 380 V
Güç: 2 KW Tel boyutu: 0.2-1.2 mm
Servo Motorları: 2 eksen Maksimum Tel Hızı: 1000 m/dk
Maksimum tel Besleme: sınırsız Model: HYD-312
Maksimum Dış Çap: 30 mm Tel besleme hızı: 1000 m/dk
Tel besleme motoru: 1.2 Kw Kamera motoru: 1.0 kw
Güç kaynağı: 220v 3p 50/60 Hz Makine ağırlığı: 530 kg
Makine boyutu: 900*950*1600 mm
Vurgulamak:

0.2-1.2mm Computer Compression Spring Machine

,

Max Wire Speed 1000m/min Automatic Spring Coiling Machine

,

2kw Power CNC Spring Machine

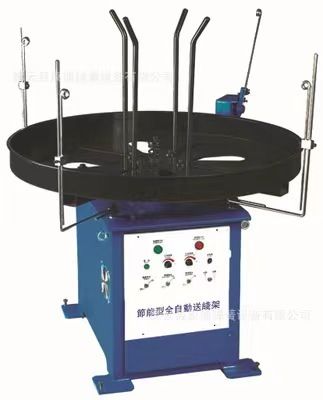

High-Precision 0.2-1.2mm Automatic Computer Compression Spring Coiling Machine Product Description Model: HYD-312 Computer Compression Spring Machine Technical Specification Details Model HYD-312 Wire Size 0.2-1.2mm Servo Motors 3 axes Max Wire Feed Unlimited Max Outside Diameter 30mm Wire Feed Speed 1000m/min Control System 1SET Decoiler 60KG Wire Feed Motor 1.2KW Cam Motor 1.0KW Power Supply 220V3P 50/60HZ Machine Weight 530KG Machine Size 900*950*1600mm Application
