Precision Automatic CNC Spring Machine with 110m/min Speed 1000 Program Storage and 380V Power for Metal Metallurgy

Precision Automatic CNC Spring Machine with 110m/min Speed 1000 Program Storage and 380V Power for Metal Metallurgy

  • Precision Automatic CNC Spring Machine with 110m/min Speed 1000 Program Storage and 380V Power for Metal Metallurgy
  • Precision Automatic CNC Spring Machine with 110m/min Speed 1000 Program Storage and 380V Power for Metal Metallurgy
  • Precision Automatic CNC Spring Machine with 110m/min Speed 1000 Program Storage and 380V Power for Metal Metallurgy
  • Precision Automatic CNC Spring Machine with 110m/min Speed 1000 Program Storage and 380V Power for Metal Metallurgy
  • Precision Automatic CNC Spring Machine with 110m/min Speed 1000 Program Storage and 380V Power for Metal Metallurgy
  • Precision Automatic CNC Spring Machine with 110m/min Speed 1000 Program Storage and 380V Power for Metal Metallurgy
Precision Automatic CNC Spring Machine with 110m/min Speed 1000 Program Storage and 380V Power for Metal Metallurgy
Ürün ayrıntıları:
Menşe yeri: Guangdong, Çin
Marka adı: HYD
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1
İletişim
Detaylı ürün tanımı
Ağırlık: 900 kg Gerilim: 380 V
Güç: 9,35 kW Tel boyutu: 0,3-2,5 mm
Servo Motorları: 10 eksen Maksimum Tel Hızı: 110 m/dak
Program Depolama: 1000 Kurşun rayı: Tinererler 80mm
Tel besleme silindiri: 2 çift Maksimum hata: ± 0.03 (uzunluk)
Motorlu marka: SANYO En kısa melek uzunluğu: 4 kez tel çapı
Güç kaynağı: 380V ±%10 V50Hz Çentik: 200kg
Makine boyutu: L1400*W950*H1700mm
Vurgulamak:

110m/min CNC Spring Machine

,

1000 Program Storage Spring Coiling Machine

,

380V Multi-function Computer Spring Machine

Precision Automatic CANLESS Spring Coiling Machine
Multi-Function 0.3-2.5MM Motor Core Component for Metal Metallurgy Machinery
The HYD-25T series computer spring machines offer precision coiling for metal components with advanced servo control technology and high-speed wire feeding capabilities.
Technical Specifications
Model HYD-25T-10A HYD-25T-12A
Wire Size 0.3-2.5mm 0.3-2.5mm
Servo Motors 10 axes 12 axes
Lead Rail Tineraries 80mm Tineraries 80mm
Wire Feed Roller 2 Pairs 4 Pairs
Maximum Error ±0.03 (Length) ±0.03 (Length)
Max Wire Feed Speed 110m/min 110m/min
Motor Brand Sanyo Sanyo
Shortest Angle Length 4 Times Wire Diameter 4 Times Wire Diameter
Power Supply 380V±10%V50Hz 380V±10%V50Hz

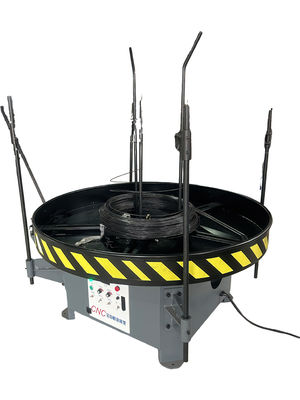

Decoiler 200KG 500KG
Machine Weight 900KG 1300KG
Machine Dimensions L1400×W950×H1700MM L1700×W1150×H1700MM
Product Features
  • Computer-controlled precision spring coiling
  • High-speed wire feeding up to 110m/min
  • Japanese Sanyo servo motors for reliable performance
  • Minimal length error (±0.03mm)
  • Multiple axis control for complex shapes
  • Robust construction with heavy-duty components

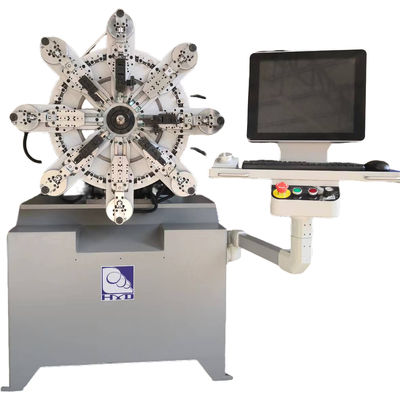

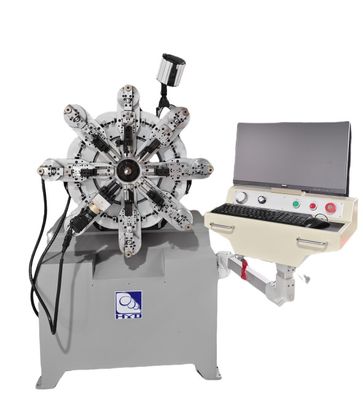

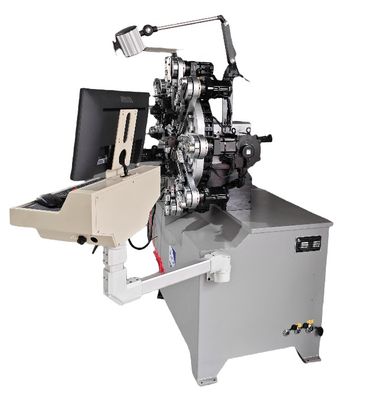

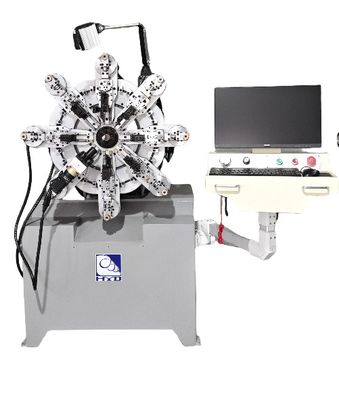

Product Images
Precision Automatic CNC Spring Machine with 110m/min Speed 1000 Program Storage and 380V Power for Metal Metallurgy 0 Precision Automatic CNC Spring Machine with 110m/min Speed 1000 Program Storage and 380V Power for Metal Metallurgy 1 Precision Automatic CNC Spring Machine with 110m/min Speed 1000 Program Storage and 380V Power for Metal Metallurgy 2 Precision Automatic CNC Spring Machine with 110m/min Speed 1000 Program Storage and 380V Power for Metal Metallurgy 3 Precision Automatic CNC Spring Machine with 110m/min Speed 1000 Program Storage and 380V Power for Metal Metallurgy 4 Precision Automatic CNC Spring Machine with 110m/min Speed 1000 Program Storage and 380V Power for Metal Metallurgy 5 Precision Automatic CNC Spring Machine with 110m/min Speed 1000 Program Storage and 380V Power for Metal Metallurgy 6
Frequently Asked Questions
Can you send me the catalogue?
We have different kinds of machines catalog available. Please specify your product requirements.
Do you accept OEM?
We can produce any of your requested designs with full customization capabilities.
Can it be configured with something else?
Yes, we can customize the machine according to your specific product requirements.
Are you a factory?
Yes, we are factory direct sales and welcome visits to our production facility.
What information is needed for an accurate quotation?
Please provide drawings, pictures, industrial voltage requirements, planned output, and technical specifications.
What is the power supply requirement?
Standard configuration is 380V, 3P, 50Hz, but we can customize to your requirements.
What is the payment term?
30% deposit upon order confirmation, 70% balance before shipment. Other terms negotiable.
What is the delivery time?
Standard production time is 30 days after deposit receipt, with some models available in 15 days.
What is the warranty period?
One year guarantee from the date of bill of lading.
What is the MOQ?
One set minimum order quantity, customized to your specific needs.
