Automatic 1-4mm Computer Spring Coiling Machine Multi-Function Metal & Metallurgy Machinery with Motor Core Components

Ürün ayrıntıları:

Menşe yeri:	Guangdong, Çin
Marka adı:	HYD

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1

İletişim

Detaylı ürün tanımı

Ağırlık:	3200 kg	Gerilim:	380V
Güç:	27 kw	Tel boyutu:	Düşük karbonlu çelik: 2-6mm, yüksek karbonlu çelik: 1-4mm
Servo Motorları:	12 eksen	Maksimum Tel Hızı:	100 m/dk
Tel besleme silindiri:	4 çift	Maksimum hata:	± 0.15 (uzunluk)
Kontrol Sistemi:	1 takım	Çentik:	500 kg
Azaltıcı:	11 adet	Servo motor gücü:	27 kw
En kısa melek uzunluğu:	4 kez tel çapı	Güç Kaynağı:	380V±10%V 50Hz
Makine Boyutu:	L2100W2050H2000 MM
Vurgulamak:	Automatic spring coiling machine 1-4mm , CNC spring machine motor core , Multi-function metal spring machinery

Automatic 1-4mm Computer Spring Coiling Machine

Multi-Function Metal & Metallurgy Machinery with Motor Core Components

Technical Specifications

Model	HYD-40T-10A	HYD-40T-12A
Wire Size	Low-carbon Steel: 2-6mm High-carbon Steel: 1-4mm	Low-carbon Steel: 2-6mm High-carbon Steel: 1-4mm
Servo Motors	10 axes	12 axes
Lead Rail	tineraries 120mm	tineraries 120mm
Wire Feed Roller	4 Pairs	4 Pairs
Maximum error	±0.15(Length)	±0.15(Length)
Max Wire Feed Speed	100m/min	100m/min
Control System	1SET	1SET

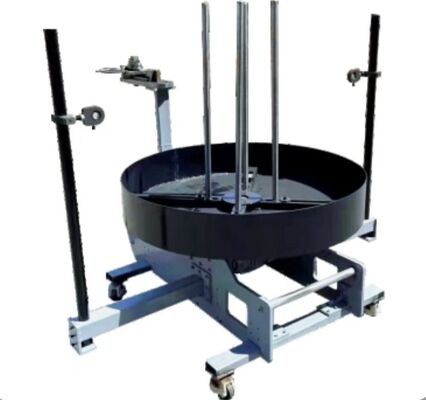

Decoiler	300KG	500KG
Reducer	10PCS	11PCS
Servo Motor Power	21.5KW	27KW
Motor Brand	Sanyo	Sanyo
Shortest Angel Length	4 Times Wire Diameter	4 Times Wire Diameter
Power Supply	380V±10%V50Hz	380V±10%V50Hz
Machine Dimension	2500KG	3200KG
Machine Size	L1100W1450H2000MM	L2100W2050H2000MM

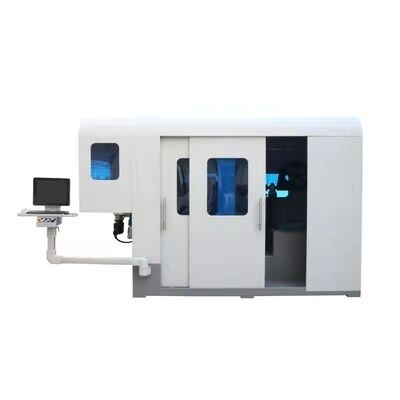

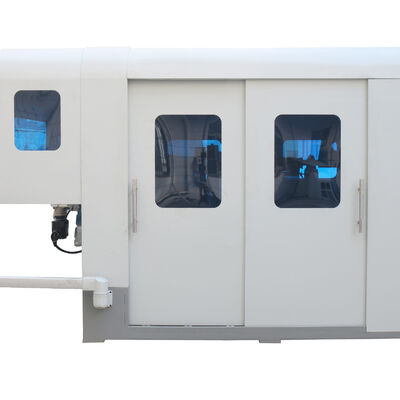

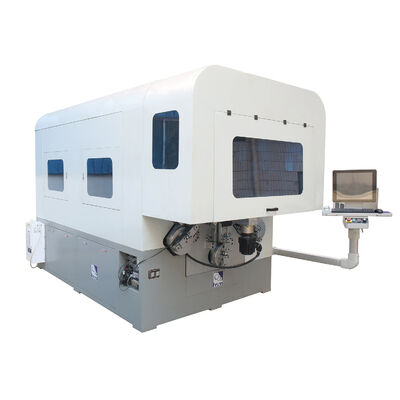

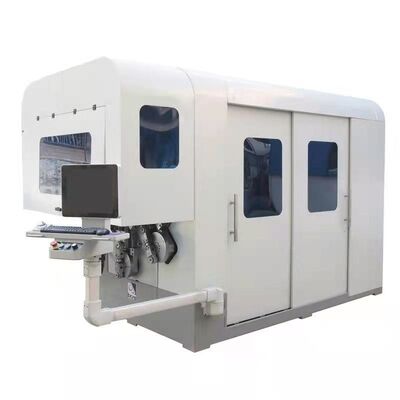

Product Images

Application Scenarios

Frequently Asked Questions

Q1: Can you send me the catalogue?

A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.

Q2: Do you accept OEM?

A2: We can produce any of your requested designs.

Q3: Can it be configured with something else?

A3: Yes, We can customize the machine according to your product requirements.

Q4: Are you a factory?

A4: Sure. We are factory direct sales; welcome to visit our factory.

Q5: What information will be helpful in getting an accurate quotation from us?

A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.

Q6: What is the power supply of the machine?

A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.

Q7: What is the payment term?

A7: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.

Q8: What is the delivery time?

A8: Normally the manufacturing time of the machine is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.

Q9: What is the guarantee period of the machine?

A9: The guarantee period is one year from the date of B/L.

Q10: What is the MOQ?

A10: One set. We will make the machine suitable for you according to your needs.
